Yorba Linda Estate Homes: Oversized Garage Door Considerations

What Counts as an Oversized Garage Door on a Yorba Linda Estate?

Most homeowners assume all garage doors come in a couple of standard sizes. On estate properties, that assumption falls apart fast. An oversized garage door is anything that goes past the common residential sizes, and estate homes here tend to need them because the garages were built deep and wide from the start.

Once a home has a three-car bay, an RV depth, or a shop area, the garage door dimensions climb quickly. Knowing where the line sits helps an owner order the right product the first time.

Standard vs. Oversized Door Widths and Heights

A single-car door usually measures 8 or 9 feet wide and 7 feet tall. A double garage door typically runs 16 feet wide by 7 feet tall. Those two sizes cover most tract homes across Orange County.

Estate homes push past those numbers. Common oversized openings include 10-foot and 12-foot single bays, plus 18-foot and wider doubles. Door width on custom frontages can reach 20 feet or more when a home has a large motor court.

Height is where estate owners feel the pinch most. Many go from the standard 7 feet to 8, 9, or even 14 feet tall. That extra clearance is what separates a garage that fits a lifted truck from one that scrapes it.

When we measure an existing opening on a Yorba Linda estate, we log both the finished width and height, then check how they compare to stock sizes. That tells us right away whether an owner is shopping standard or custom.

Why Estate Homes Near Kellogg Ranch and East Lake Village Need Bigger Doors

The newer luxury builds around Kellogg Ranch sit on larger lots with deeper driveways. Many of these homes came with three-car garages designed for full-size vehicles, not compact sedans. That layout alone calls for wider or multiple oversized doors.

East Lake Village has its own mix, from lakeside homes to hillside custom builds. Owners there often store a boat, a work van, or a second SUV, which pushes them toward taller and wider openings. The garage becomes part storage, part parking, part shop.

Home styles matter too. Spanish and ranch estates in these pockets look best with doors that match their scale, so a narrow standard door can look wrong on a wide facade. Bigger doors keep the proportions right.

We install a lot of oversized units across these communities, and the pattern is consistent. The larger the lot and the more vehicles a family keeps, the more likely a three-car garage needs custom sizing rather than off-the-shelf panels.

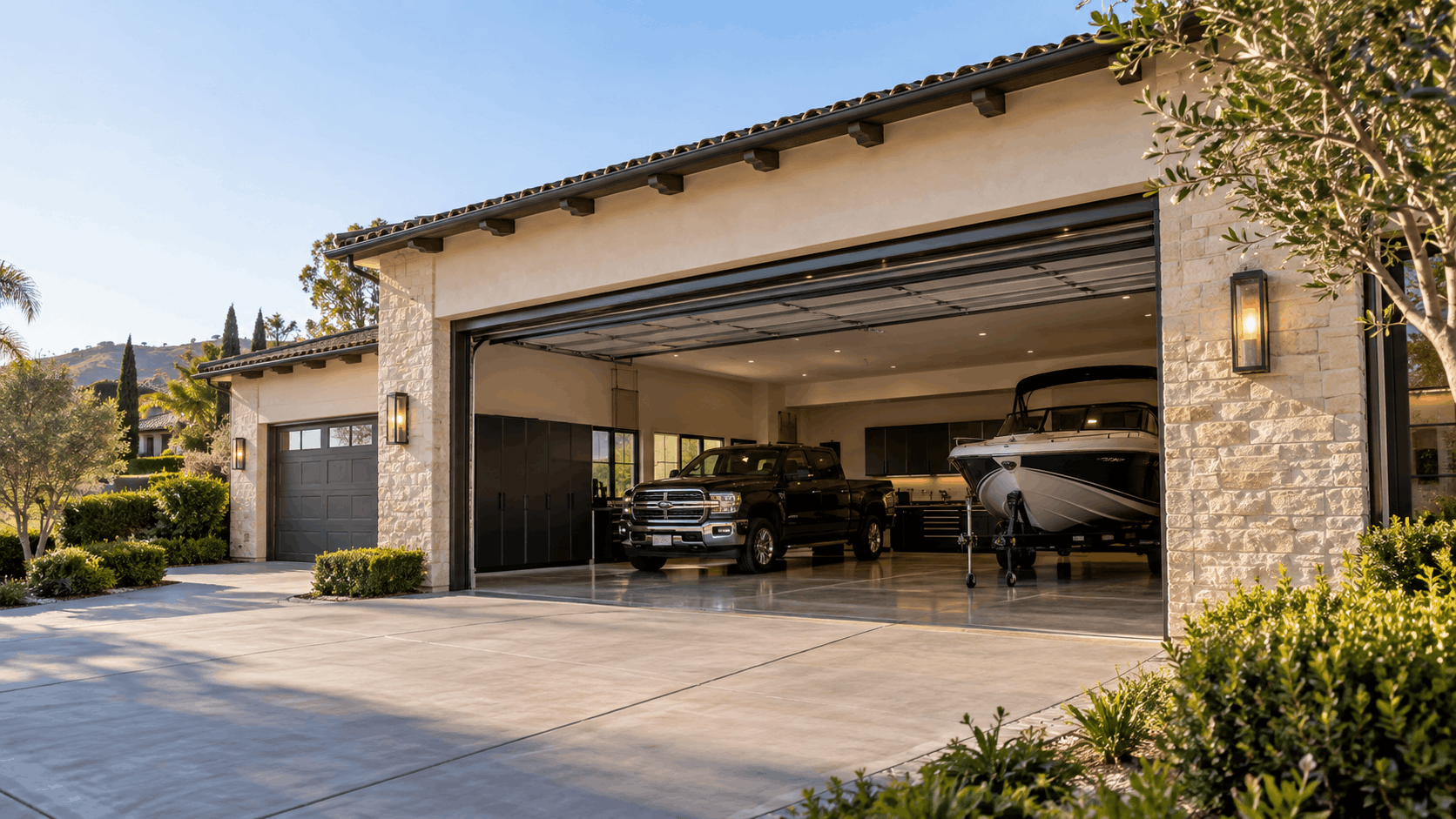

RV and Boat Doors for Properties With Extra Storage

Hillside estate lots often have the room for an RV pad or a deep bay. To roll a Class A motorhome inside, an owner needs an RV garage door that reaches 12 to 14 feet tall. That is nearly double a standard opening.

Boat storage has similar demands. A wakeboard tower or a tall trailer can need 10 to 12 feet of clearance, and that measurement includes the trailer, not just the hull. It pays to measure the tallest point loaded on the trailer.

Lifted trucks are the sleeper case. A stock truck fits a 7-foot door, but add a lift kit and oversized tires and suddenly 8 feet is barely enough. We often recommend an 8-foot minimum for these and a tall garage door of 9 feet when there is any doubt.

Before ordering, we always confirm the real loaded height of the vehicle, then add a few inches of buffer. A door that clears the roof by an inch is a door that eventually gets damaged.

How to Measure Your Rough Opening Correctly

Measuring the rough opening is where many projects go sideways. The rough opening is the framed hole in the wall, not the door itself. Width is measured left to right between the finished jambs, and height runs from the floor to the header.

Two more numbers matter just as much. Headroom is the space between the top of the opening and the ceiling, and side room is the space on each side of the opening to the wall. Standard torsion setups want about 12 inches of headroom and 4 inches of side room.

Pros add small buffers to every reading. We typically want the finished opening to match the door size within a fraction of an inch, and we confirm the floor is level so the door seats correctly. A sloped garage slab can throw the whole install off.

If an owner is unsure, our team measures for free during a site visit. Getting the rough opening right on the front end saves reorders, delays, and framing surprises later. You can also review our garage door installation service to see how we handle custom sizing.

Material and Weight Factors for Large Doors

A wider, taller door weighs far more than a standard one, and that weight changes almost everything downstream. The garage door material affects cost, looks, maintenance, and the hardware needed to lift it safely. Estate owners have to weigh curb appeal against real-world function.

The right choice depends on the home style and how the garage gets used. A showpiece front on a Spanish estate has different needs than a working shop bay.

Wood and Wood-Look Doors on Traditional Estates

Real wood doors look stunning on the Spanish and ranch estates around Yorba Linda. Cedar, mahogany, and redwood carry a warmth that painted steel cannot match. On a wide frontage, a genuine wood garage door can define the whole home.

The trade-off is weight and upkeep. A large solid wood door can weigh several hundred pounds, which stresses springs and tracks. Wood also needs refinishing every few years, especially with sun exposure on west-facing hillside lots.

This is why many owners choose a composite door instead. Composite and wood-look steel panels give the grain and color of wood with far less maintenance and lower weight. From the street, a quality composite reads as real wood.

We help owners compare true wood against composite based on their facade, their budget, and how much upkeep they want to take on. For a custom look with less hassle, our carriage house garage door options blend well with traditional estate styles.

Steel and Aluminum Options for Wider Spans

Steel and aluminum shine on wide openings. A steel garage door resists sag better than wood and costs less for the same span. On a 16-foot or wider door, that stiffness keeps the panels straight over the years.

Panel gauge tells you the steel thickness. Lower gauge numbers mean thicker, stronger steel, so a 24-gauge panel outperforms a 27-gauge one on a big door. For estate installs, we lean toward heavier gauges that hold up on long spans.

Aluminum with glass suits modern hillside builds that want light and a contemporary look. It is lighter than steel, which helps on very wide doors, though it dents more easily. Our modern glass garage door line fits these designs well.

Insulation matters on both. An insulated panel with a foam core adds rigidity and keeps the garage cooler, which counts on attached estate garages. We walk owners through single-layer, double-layer, and triple-layer builds to match their needs.

Why Heavier Doors Demand Stronger Springs and Tracks

Weight drives the entire lifting system. A heavier door needs a higher-rated torsion spring, thicker track, and stronger cables. Skip the upgrade and parts wear out fast or fail outright.

Torsion springs do the heavy lifting on big doors. We size them to the exact door weight and cycle life so they last, and on very heavy doors we sometimes run dual springs. Undersized springs snap early and leave a door stuck.

Track thickness matters just as much. A heavy-duty track resists bending under a wide, heavy door, while a light residential track can flex and let rollers jump. Cable rating has to match the load too, or a frayed cable can give way under tension.

When hardware is undersized, the failures are predictable: broken springs, bent tracks, and off-track doors. Our spring and cable repair team sees these often on oversized doors that were built with standard-duty parts. Matching hardware to weight is the fix.

Structural and Header Considerations for Wide Openings

Before an owner orders a wide door, the building side of the equation needs attention. A wide opening removes a big chunk of load-bearing wall, so header support and framing carry more weight. Getting this wrong can cause sag or structural problems.

This is the part homeowners overlook most, and it is the part that can add real cost. Planning for it early keeps a project on track.

Header and Beam Support for 16-Foot and Wider Doors

The header is the beam that spans the top of the garage opening. On a 16-foot or wider door, that header carries the load from the roof and any floors above. The wider the span, the more that beam has to handle.

On many estate homes, the existing header was sized for the original opening. Widening it means a new, larger header beam and sometimes new posts on each side. That is load-bearing work, and it usually needs a licensed contractor to verify.

Permits come into play here. The City of Yorba Linda building department requires a building permit for structural changes to an opening. A same-size door swap usually does not, but cutting the wall wider does.

We coordinate with owners and their contractors so the framing is right before the door arrives. Ordering a custom 18-foot door without confirming the header is how projects stall for weeks.

Preventing Door Sag and Center Bow

Wide doors fight gravity across their whole span. Over time, a long top section can sag or bow in the middle, especially on heavier materials. That center bow throws off the seal and the balance.

Struts and reinforcement bars solve this. A horizontal door strut stiffens each section so it stays straight across a wide opening. On oversized doors, we add struts to multiple sections rather than just the top.

A reinforcement bar also helps where an opener attaches, spreading that pulling force so the panel does not flex. Without it, the opener arm can slowly deform the top section. These parts are cheap insurance on a big door.

Signs of an under-reinforced door are easy to spot. Look for a visible dip in the top section, gaps at the header when closed, or a door that shudders as it moves. If an owner sees door sag developing, it is worth a service call before the panel is ruined.

Ceiling Height and Track Type on Hillside Homes

Hillside estates near Hidden Hills often have unusual ceilings inside the garage. Some have low headroom from ductwork or a room above, while others have tall vaulted ceilings. The track type has to match what is up there.

A low headroom track fits when there are only a few inches above the opening. It uses a compact drum and spring setup so the door still rolls back overhead. Without it, a door simply will not clear the ceiling.

High-lift tracks work the opposite way. When a garage has tall ceilings, a high-lift setup raises the door more vertically before it turns back, which frees up ceiling space and suits taller vehicles. This pairs well with a wall-mounted opener.

We measure the ceiling and any obstructions during the site visit, then spec the track to fit. On the varied hillside lots across Yorba Linda, no two garages are quite the same, so this step avoids ordering the wrong hardware.

Wind and Seismic Load in Yorba Linda

Yorba Linda sees strong Santa Ana winds, especially in the hills and canyons in fall and winter. A large door presents a big flat surface for wind to push against. That is real wind load on the panels and tracks.

Wind-rated doors use extra bracing and stronger panels to resist that pressure. On exposed hillside frontages, we recommend a higher wind rating so the door does not flex or blow in during a strong gust. The wider the door, the more this matters.

California seismic codes also shape the install. Seismic bracing and proper anchoring keep the door assembly secure during shaking. For guidance on building safety standards, owners can review the California Department of General Services resources.

We build oversized doors to handle both the wind and the seismic side of local conditions. It adds a bit to the cost, but on a wide estate door it is the difference between a door that lasts and one that fails in the first big windstorm.

Matching HOA and Architectural Rules in Yorba Linda Communities

Many estate communities in Yorba Linda have design rules that control how a garage door looks. Color, style, and window layout are all fair game for review. Planning around these HOA rules before buying saves rejected orders and wasted money.

An architectural review board can hold up an install if the door does not match the community standard. It pays to know the process first.

Design Review in Kerrigan Ranch and Vista Del Verde

Kerrigan Ranch and Vista Del Verde are design-controlled communities. Owners there usually need design approval before changing a garage door. The board wants the new door to fit the overall look of the neighborhood.

The approval steps are straightforward but take time. An owner submits the proposed door style, color, and materials to the HOA for review, and the board responds within a set window. Rushing an install without this can mean tearing it out.

We help owners prepare the details the board wants to see. That includes product spec sheets, color samples, and a photo mockup on the home when needed. Clear submissions get approved faster.

Because we install across these Yorba Linda communities, we know the kinds of doors that tend to pass review. That experience keeps projects moving instead of stalling at the HOA stage.

Color, Panel Style, and Window Requirements

Most HOAs limit the door color to a palette that fits the community. Earth tones, muted browns, and whites are common approvals, while bold or bright colors often get rejected. The finish should complement the home, not stand out.

Panel style is also reviewed. Raised panel and carriage-style doors usually fit traditional estates, while flush or modern panels suit contemporary builds. Matching the panel style to the architecture keeps the board happy.

Window inserts get their own scrutiny. Some communities require or ban glass depending on the street-facing look, and the placement matters. A row of top-section windows is a common approved layout.

We steer owners toward finishes, styles, and window options that fit both their taste and the community rules. That way the door looks right and clears review the first time.

Keeping Multiple Doors Consistent Across a Facade

A wide estate frontage often has three or four garage doors side by side. Keeping those matching doors uniform is harder than it sounds. Slight color or panel differences show badly across a facade.

The best move is to order all the doors together from the same production run. That keeps the finish, texture, and hardware consistent. Ordering one door later to match an older set almost never lines up perfectly.

Layout matters too. On a wide frontage, spacing and alignment between doors affect how uniform the whole thing reads. We plan the placement so the doors look intentional, not pieced together.

When one door in a set needs replacing, we help owners get the closest possible match or suggest replacing the group for a clean look. On a high-end home, a mismatched door drags down the whole curb appeal.

Choosing the Right Opener for a Heavy, Wide Door

A heavy, wide door needs an opener built for the load. An underpowered garage door opener will strain, overheat, and wear out early. Picking the right horsepower, drive type, and features keeps a big door running smoothly for years.

Estate doors are not the place to save a few dollars on a light-duty opener. The unit has to match the weight it lifts every day.

Horsepower and Torque Ratings for Big Doors

Opener horsepower measures lifting power. A standard single door runs fine on a 1/2 HP unit, but a heavy estate door needs more. We commonly install 3/4 HP or higher on oversized doors.

Torque matters as much as horsepower. A heavy door opener with strong torque starts the lift smoothly and holds the door steady through the travel. That steady pull reduces strain on the whole system.

On very large or solid wood doors, we sometimes go to a full 1 HP or a commercial-grade unit. The extra capacity means the opener is not working at its limit on every cycle. That headroom extends its life.

We match the opener rating to the actual measured door weight, not a guess. Our opener and smart access team sizes the unit so it lifts the door with room to spare.

Jackshaft and Wall-Mount Openers for Tall Ceilings

A jackshaft opener mounts on the wall beside the door rather than on the ceiling. It drives the torsion shaft directly, which frees up the entire ceiling. On estate garages with tall or vaulted ceilings, that space is worth having.

These wall-mount openers pair perfectly with high-lift track setups. Since the door rises more vertically, a ceiling-mounted opener would not reach anyway. The side-mounted unit solves that cleanly.

They also run quietly, which helps when there is living space above or beside the garage. No rail rattling across the ceiling means less noise transferring into the home. Many estate owners prefer them for that reason alone.

The trade-off is cost, since jackshaft units run higher than a standard chain drive. On a high-ceiling estate garage, the clean look and quiet operation usually justify it. We help owners decide based on their ceiling and budget.

Smart Controls, Battery Backup, and Safety Sensors

A smart opener lets an owner control the door from a phone and get alerts if it is left open. On a large estate with multiple bays, that visibility is handy. Our smart WiFi opener setup covers this.

Battery backup keeps the door working during a power outage. Yorba Linda hillside areas see outages during Santa Ana wind events, and California law now requires backup on new residential openers. A heavy door is not something you want to lift by hand.

Safety sensors matter even more on big doors. The photo-eye safety sensor reverses the door if something crosses its path, which is important given the weight involved. A heavy door coming down on a car or a child is a serious risk.

We test the reversing feature and sensor alignment on every install. On oversized doors, these safety systems are not optional extras. They are the parts that keep a heavy door from causing damage or injury.

Insulation, Energy, and Climate Concerns for Large Doors

A big garage door is a big surface for heat to move through. Garage door insulation affects the temperature inside and the energy use of the whole home. On estate homes with rooms above or beside the garage, this matters even more.

Yorba Linda summers get hot, and an uninsulated door turns the garage into an oven. The right build keeps that heat out.

R-Value Choices for Attached Estate Garages

R-value measures how well a door resists heat flow. A higher R-value means better insulation. Non-insulated doors sit near R-0, while a well-built insulated door can reach R-16 or higher.

For an attached garage with living space nearby, we recommend a mid to high R-value. That keeps the rooms above and beside the garage more comfortable through the summer. It also lowers the load on the home cooling system.

The insulation type varies by build. Polyurethane foam cores give the best R-value per inch and add stiffness to the panel. Polystyrene panels cost less but insulate slightly less well.

We help owners pick an R-value that fits how the garage connects to the home. A detached shop needs less than a garage with a bonus room on top. Our insulated steel garage door options cover a wide R-value range.

Weather Sealing Against Heat and Dust

A wide door creates wider gaps for heat and dust to sneak through. A good bottom seal presses against the floor to block the gap under the door. On an uneven estate slab, we fit the seal to the actual floor contour.

Side weatherstripping seals the vertical edges where the door meets the jambs. Combined with the bottom seal, this weather seal keeps summer heat and hillside dust out of the garage. The bigger the door, the more sealing surface there is to get right.

Dust protection is a real concern in the hills. Dry canyon winds carry fine dust that settles on cars and tools. Tight seals cut down on how much gets in.

We check and replace worn seals as part of service. Our weatherseal and insulation retrofit tightens up an existing door that leaks air and dust. On a wide door, fresh seals make a noticeable difference.

Ventilation for Workshops and Car Collections

Owners who use a large garage as a shop or car collection space need airflow. A sealed, insulated garage holds heat and fumes if there is no ventilation. Some fresh air keeps the space usable and protects what is stored inside.

Door features can help. Vented panels, screen inserts, and partial-open positioning all bring in air while keeping the door mostly closed. On mild days, cracking the door a foot with the opener works well.

A car collection has its own needs. Steady temperature and humidity protect paint and interiors, so pairing insulation with controlled ventilation keeps the space stable. Many collectors add a separate exhaust fan alongside the door.

We advise owners on which door features support their use. A working shop with welding needs more airflow than a climate-controlled collection. Matching the door setup to the use keeps the garage comfortable and the contents safe.

Installation, Timeline, and Costs From the Urgent Garage Doors Team

An oversized door install is a bigger job than a standard swap. It involves more framing checks, heavier parts, and careful balancing. We serve estate homes across Yorba Linda from our Irvine base, and we set clear expectations upfront.

Knowing what the work involves and what it costs helps owners plan the project without surprises.

What an Oversized Door Install Involves

The job starts with old door removal, which means safely releasing spring tension and taking down the panels and hardware. On a heavy door, this step alone takes care and the right tools. We never rush spring work.

Next comes a framing check to confirm the header and jambs can carry the new door. If the opening is being widened, framing work happens before anything else. Then we set the tracks, mount the door sections, and install the springs.

Spring balancing is where experience shows. We tension the torsion springs so the door sits balanced at any height and the opener does not strain. A poorly balanced heavy door wears out its opener fast.

Finally we test the full system, including the opener, sensors, and reversing feature. An oversized install takes longer than a standard one because every part is heavier and the balancing is more exact. Rushing any step on a big door invites problems.

Price Ranges for Estate-Size Doors

Cost depends on size, material, and hardware. An oversized steel door with install often lands in the mid four figures, while a custom wood door can run well into five figures. The garage door price climbs with size and material quality.

Custom door cost drivers include real wood, custom glass, wind rating, and heavy-duty hardware. Add a jackshaft opener and battery backup, and the total rises further. Framing work to widen an opening is a separate line item.

For a rough sense, a standard-size door replacement is a fraction of what an estate-size custom install runs. The extra materials, heavier springs, thicker tracks, and longer labor all add up. We give an honest breakdown so there are no surprises.

Every project is different, so we provide an installation quote after seeing the opening in person. That way the number reflects the real door, framing, and hardware the home needs, not a generic estimate.

Serving Yorba Linda From Our Irvine Base

Our shop sits in Irvine, and we run up to Yorba Linda regularly. The trip from Irvine to Yorba Linda is a straight shot via the 55 and 91 freeways, which puts estate neighborhoods within easy reach. Local service means we can get parts and crews there quickly.

We have worked on estate homes across the city, from the country club area to the hillside custom builds. That experience with local styles, HOA communities, and hillside conditions shapes how we spec each door. We know what these homes need.

Because we cover the wider area, we also serve nearby cities. Owners can see our full service locations to confirm coverage. Estate homes in the north county are well within our range.

When an owner calls, we schedule a site visit to measure and assess the opening. That in-person look is how we build an accurate plan for a big door. Guessing on estate-size projects does not work.

Maintenance to Protect a Big Investment

A large door is a significant investment, so upkeep protects it. Lubrication is the simplest step. We recommend oiling the springs, rollers, and hinges every few months to keep everything moving smoothly.

Spring checks catch problems early. On a heavy door, a worn spring is a safety risk, so a spring check twice a year helps spot wear before a break. Listen for grinding or a door that feels heavier than usual.

Balance tests keep the opener from overworking. With the opener released, a balanced door should hold its position halfway open. If it drops or rises on its own, the springs need adjustment.

Our preventive maintenance plan handles this schedule for owners who would rather not track it. On a heavy estate door, regular garage door maintenance keeps it running safely for many years. The cost of upkeep is small next to a full replacement.

Final Thoughts

Oversized garage doors on Yorba Linda estates come with real considerations, from sizing and materials to framing, HOA rules, and the opener. Getting each one right means a door that fits the vehicles, matches the home, and lasts for years. Skipping steps leads to sag, failures, and rejected designs.

Our team measures carefully, specs the hardware to the weight, and coordinates with framing and HOA needs so the project goes smoothly. For a custom estate door done right, contact our team for a consultation. We will assess the opening in person and build a plan that fits the home.

Frequently Asked Questions

What is the largest garage door size available for an estate home?

Custom garage doors can go past 20 feet wide and over 8 feet tall, with RV heights reaching 14 feet. A single wide door gives a clean, uninterrupted look but needs a strong header to span the opening. Separate doors with posts between them are easier to frame and often more affordable. We help owners weigh the look of one wide door against the practicality of multiple bays.

How much does an oversized garage door cost in Yorba Linda?

An oversized steel door with install often runs in the mid four figures, while a custom wood door with premium hardware can reach well into five figures. Cost drivers include material, wind rating, glass, opener type, and any framing work to widen the opening. Every home is different, so we provide a firm installation quote after measuring the opening in person to reflect the real project.

Do I need a permit to widen my garage opening?

Yes, widening a garage opening changes the structure and usually requires a permit from the City of Yorba Linda building department. Cutting the wall wider means a new header and often new support posts, which is load-bearing work. A same-size door replacement generally does not need a permit. We coordinate with owners and contractors so the framing and permitting are handled before the door is ordered.

Will my HOA approve a custom oversized door?

Many estate communities like Kerrigan Ranch and Vista Del Verde require design approval before an install. Submit the door style, color, material, and window layout for review first. Earth-tone finishes, carriage or raised-panel styles, and matching multiple doors usually get approved. We prepare the spec sheets and mockups the board wants to see, which helps projects clear review the first time without delays.

What opener horsepower do I need for a heavy door?

For a large or heavy estate door, we recommend 3/4 HP or higher, and sometimes a full 1 HP or commercial-grade unit on solid wood doors. The extra power keeps the opener from straining on every cycle. A jackshaft wall-mount opener is a better fit when the garage has tall ceilings or a high-lift track. We size the opener to the measured door weight for reliable operation.

How long does installation take for an oversized door?

A straightforward oversized door install usually takes most of a day because the parts are heavier and balancing takes more care. If the opening needs framing work to widen it, or if the door is a custom order, the timeline extends. Custom doors also have a production lead time before install. We give owners a realistic schedule after seeing the opening and confirming what the project involves.

Can I fit an RV or lifted truck through a taller door?

Yes, but the door height has to match the vehicle. RVs often need 12 to 14 feet of clearance, while a lifted truck may need 8 to 9 feet depending on the lift and tires. Always measure the tallest loaded point of the vehicle, then add a few inches of buffer. We confirm the real clearance before ordering so the door does not scrape the roof.

How do I keep a wide door from sagging over time?

Wide doors need struts and reinforcement bars to stay straight across the span. A door strut stiffens each section, and a reinforcement bar spreads the opener force so the top panel does not flex. Regular balance checks also catch problems early. If you notice a dip in the top section or gaps at the header when closed, have it serviced before the panel is damaged.

Are insulated doors worth it for a large garage?

For most estate garages, yes, especially with living space above or beside the garage. A higher R-value door keeps those rooms more comfortable through hot Yorba Linda summers and lowers the cooling load on the home. Insulation also stiffens the panel, which helps on a wide door. A detached shop needs less insulation than an attached garage with a bonus room on top.

Do you service Yorba Linda from your Irvine location?

Yes, we serve Yorba Linda estate homes from our Irvine base, reaching the city via the 55 and 91 freeways. We have worked on estate builds across the country club area and the hillside neighborhoods. When an owner calls, we schedule a site visit to measure and assess the opening, then build an accurate plan and quote for the door the home needs.
