Pedestrian Pass Doors Built Into Garage Doors: When a Door-Within-a-Door Makes Sense

What a Pedestrian Pass Door Actually Is

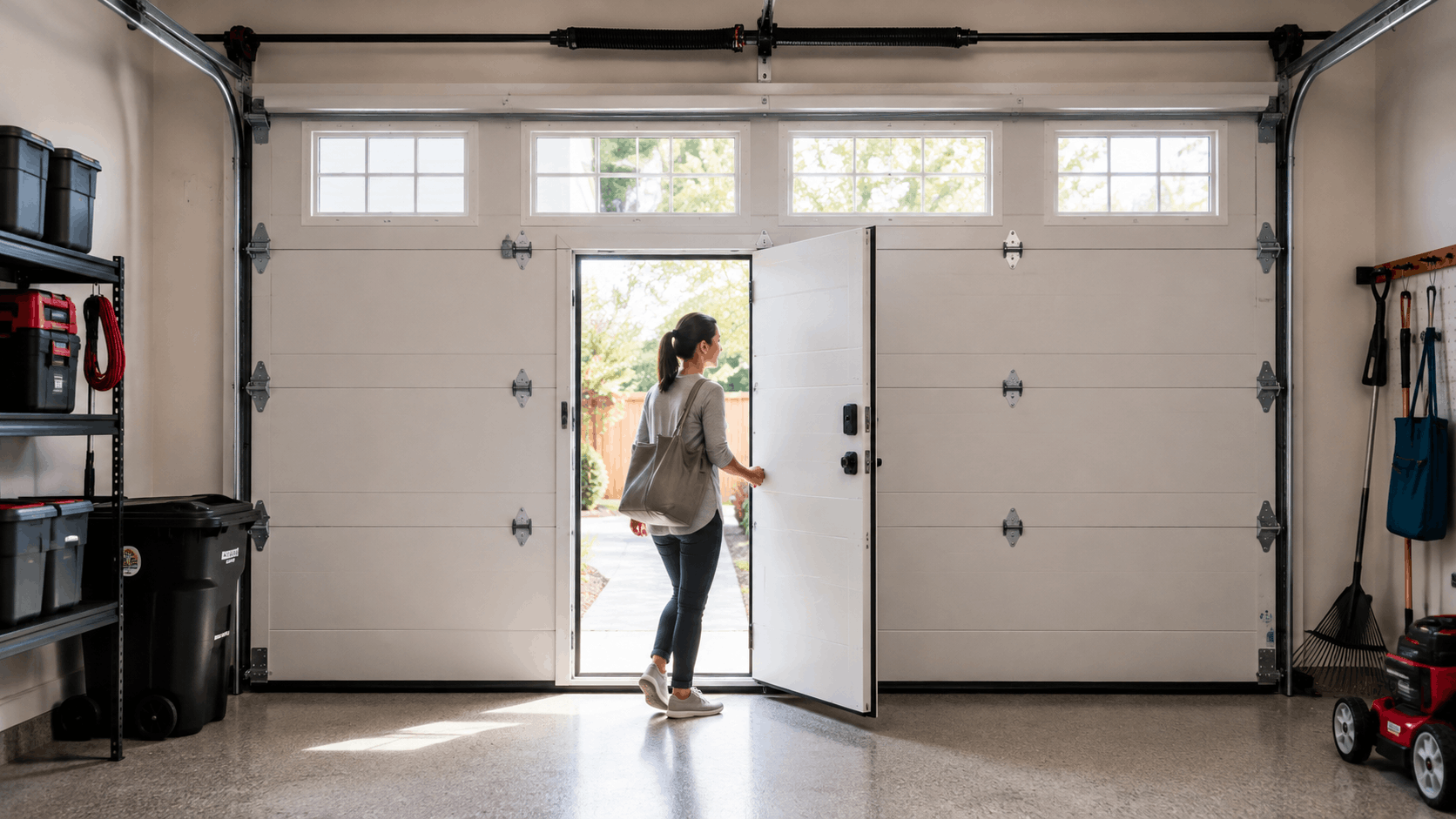

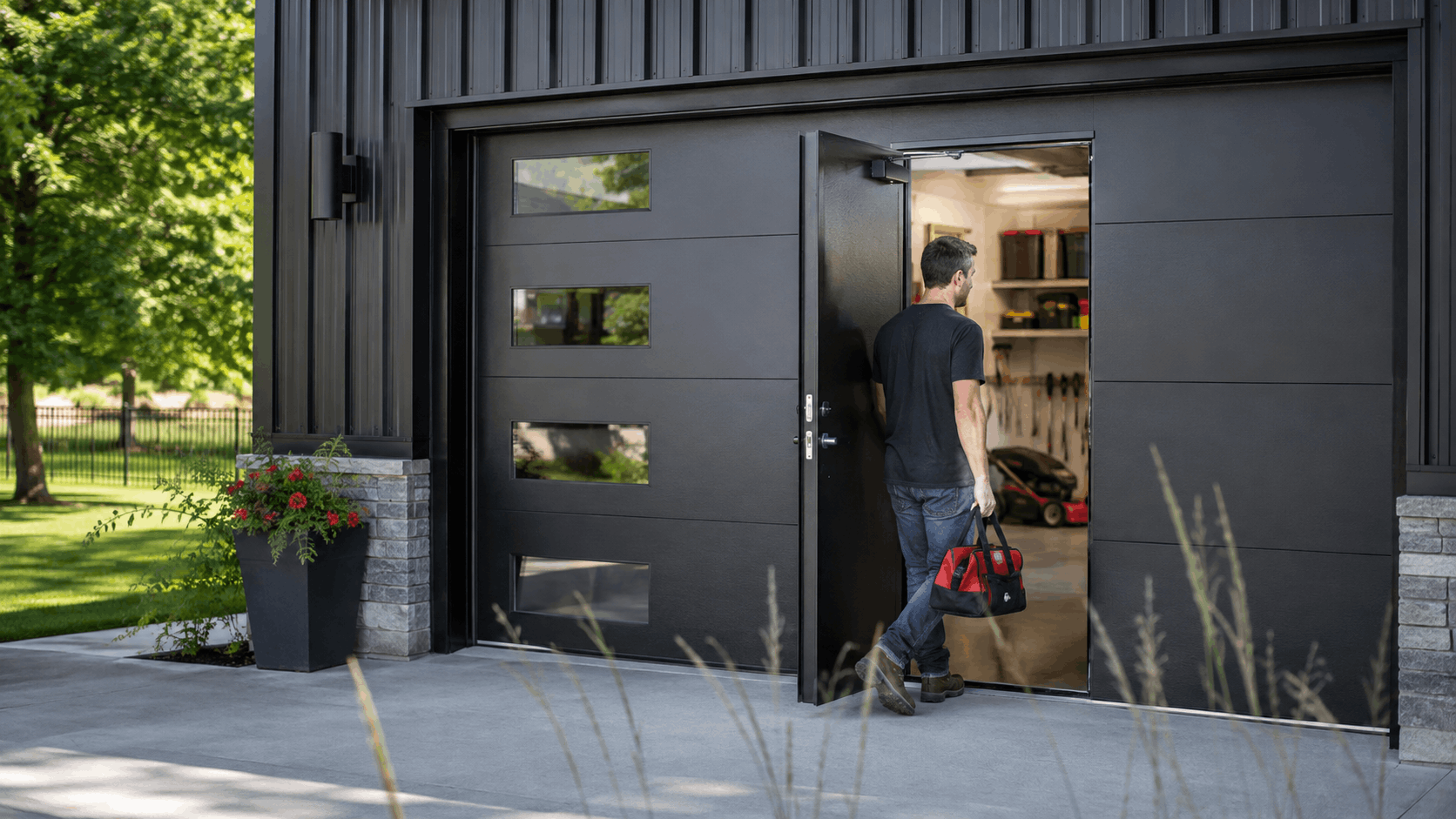

A pass door is a person-sized door framed inside a full-size garage door. Instead of walking around to a side entrance or lifting the whole door, you open a small hinged door that swings in or out. The rest of the garage door stays closed and locked in its tracks.

The idea has been around for decades on commercial buildings and warehouses. Over the last several years, it has grown popular on homes across Irvine, especially where the garage doubles as a workshop or the only entry point. When we install one, we integrate it into a sectional garage door so the panel and the small door move together as one unit.

Homeowners like it because it turns the garage into a room they can walk into as easily as any other. No opener noise, no waiting, no cranking the door up for a two-second errand.

Pass Door vs. Wicket Door: The Same Thing?

The names cause a lot of confusion. A pass door, a wicket door, and a man door usually describe the exact same thing: a small pedestrian door built into a larger overhead door. The term you hear depends on who you ask.

In the industrial and commercial world, the term wicket door shows up most often. It comes from older gate terminology, where a small opening sat inside a larger gate. On the residential side, most Irvine suppliers and installers simply say pass door or pedestrian door.

You may also hear the phrase man door tossed around, which is the same concept borrowed from warehouse language. When you call us, feel free to use whatever term feels natural. We will know you mean the small door inside the big garage door, and we will match the right product to your home.

How a Door-Within-a-Door Is Built

A pass door starts with a reinforced steel or aluminum frame set inside one of the garage door panels. The frame carries the weight of the small door and keeps the larger panel from flexing where it was cut. Good framing is what separates a door that lasts twenty years from one that sags in two.

The small door hangs on heavy-duty hinges, usually three per door, rated for daily foot traffic. Spring-loaded hinges are common so the door closes itself after you walk through. At the bottom sits a threshold, a raised metal sill that seals against weather and gives the door frame its rigidity.

Because you are cutting an opening into a panel, the surrounding steel needs extra bracing. Factory-built pass doors handle this with reinforcement bars welded into the panel. That way the door still travels up and down its tracks smoothly without twisting or binding.

Where It Differs From a Separate Side Entry Door

A pass door is not your only option for foot access. Some homeowners cut a separate side entry door into the garage wall instead. Both solutions get you into the garage without raising the main door, but they fit different floor plans.

A walk-in door in the side wall works well when there is open space along the side yard and a clear path to it. It keeps the garage door itself simple and lighter, and it avoids any step-over threshold. The downside is that you need wall space, a path, and sometimes room the setback rules will not allow.

A built-in pass door shines when the garage sits tight against a property line, faces the street directly, or has no usable side yard. Many Irvine lots, especially newer ones in dense villages, have almost no room on the sides. In those cases the door-within-a-door is often the only practical way to add foot access. If you are unsure which route fits your lot, our garage door installation team can look at your layout and advise.

When a Pass Door Makes Sense for an Irvine Home

Not every home needs a pass door. The choice comes down to your garage layout, how you use the space, and how often you find yourself raising the big door for small reasons. Here in Irvine, we see a few situations where it pays off again and again.

• The garage is the only way into the space with no side or interior door
• The big door opens dozens of times a day for quick foot trips
• The garage is a workshop, gym, or heavily used storage room
• The side yard is too narrow or blocked to add a separate walk-in door

Below we break down the most common cases we run into across town, plus the times when we tell people to skip it.

Garages With No Other Walk-In Access

Some homes simply have no other door into the garage. Detached garages are the classic example. If the garage sits at the back of the lot with no interior connection to the house, the only way in is the big overhead door, which gets old fast.

We see this often with older properties around Northwood and similar established neighborhoods, where the original builders never added a side door. A detached garage with only the main door means residents raise it for every trash run, tool grab, and trip to the freezer out back.

A pass door turns that detached garage into a space you can pop into on foot. It also keeps the big door closed most of the day, which cuts wear and keeps the interior cleaner. For a garage that gets constant foot traffic, this is the single biggest quality-of-life upgrade we install.

Homes Where the Big Door Opens Too Often

Every full cycle of the garage door puts wear on the opener motor and the springs. A door that opens and closes forty times a day ages far faster than one that cycles four times. Families with active kids and busy garages feel this the most.

We work with households near University Park and Turtle Rock where the garage door is basically the front door. Bikes, sports gear, and daily comings and goings mean the opener runs nonstop. Each of those quick trips could have been a two-second walk through a pass door instead.

Cutting down on full cycles reduces opener wear and extends the life of your hardware. If your opener already feels tired, our team can also check it during a visit. Learn more about keeping the motor healthy on our opener repair and troubleshooting page.

Workshops, Home Gyms, and Storage Setups

Garages in Irvine do a lot more than park cars. Many have become home offices, woodworking shops, garage gyms, and overflow storage. When the garage is a room you spend real time in, foot access changes everything.

A workshop owner steps out to grab a coffee or take a phone call a dozen times a day. Someone running a garage gym walks in for a morning session, then back inside afterward. With a pass door, none of those trips involve the full door cycle, the opener noise, or the burst of outside air.

It also keeps the workspace more stable. Sawdust stays put, climate stays even, and the big door only opens when you actually need to move something large in or out. For serious garage users, this is where a pass door earns its cost.

When a Pass Door Is the Wrong Call

We will be honest when a pass door does not make sense. On a narrow single-car garage, the panel may not have enough width to fit a proper door plus the reinforcement around it. Squeezing one in can leave the door weak and the opening cramped.

Clearance is the other issue. A pass door needs room to swing and a clear approach on both sides. If your driveway is short or the garage is packed to the panel, the door becomes awkward to use and easy to block.

There are also homes where a plain side entry door is simply the better buy. If you have open side-yard space and no setback problem, a separate walk-in door avoids the threshold step and keeps your garage door lighter. We would rather point you to the right solution than sell you a pass door you will not love.

The Real Benefits Homeowners Notice

Once a pass door is in, the daily wins add up fast. Convenience is the one people mention first, but the energy savings and safety benefits matter just as much over the years. Here is what our Irvine customers tell us after living with one.

Quick Foot Access Without Raising the Big Door

The most obvious benefit is speed. Grabbing the trash cans, wheeling out a bike, or reaching for a tool no longer means a full door cycle and a wait. You just push through the pass door and you are in.

Over a week, those saved seconds add up to real time and less hassle. No more standing in the driveway waiting for the opener to finish, and no more walking around the house because the garage was the only path. The convenience is the reason most people call us in the first place.

It also makes the garage feel like part of the house rather than a sealed box you only enter by machine. Foot access on demand turns a storage cave into a usable room.

Less Strain on the Opener and Springs

Every time the big door rises, the opener motor and the torsion springs do real work. Those parts are rated for a set number of cycles. Cut the number of full cycles and you stretch out the life of the whole system.

A typical torsion spring is rated for around 10,000 cycles. A busy garage can burn through that in a few years. By using a pass door for foot trips, you might cut daily cycles in half, which can add years to the spring and opener life.

When springs do wear out, they need proper handling by a pro. Our torsion spring replacement service keeps that job safe and correct. A pass door simply means you call us for that repair less often.

Keeping Heat and Dust Out

Irvine summers get hot, and the garage bakes when the big door opens on a July afternoon. Every full opening lets a wall of heat pour in and drives up the temperature inside. A pass door lets you come and go while keeping most of that heat outside.

Dust is the other problem. When the Santa Ana winds kick up in fall, opening the full door invites grit and debris across the whole floor. A small pass door exposes far less opening and keeps the interior cleaner.

If keeping the space sealed matters to you, pairing a pass door with good weather sealing makes a real difference. Ask our team about a weatherseal and insulation retrofit to hold heat and dust at bay year round.

The Downsides and Trade-Offs to Weigh

A pass door is not free of drawbacks. Being fair about the trade-offs helps you decide with clear eyes. The main issues come down to the threshold, the door structure, and the cost.

• A raised threshold you have to step over every time
• Extra weight and panel reinforcement that changes door balance
• Higher cost than a plain sectional door of the same size

None of these are dealbreakers for most homes, but they are worth knowing before you commit.

The Raised Threshold You Have to Step Over

Because the pass door frame runs around all four sides, there is a raised threshold at the bottom. It usually sits four to seven inches high. You step over it each time you walk through.

For most people that step is a minor thing you stop noticing. But it can be a real trip hazard for older residents, small kids, or anyone carrying a heavy load. If you plan to roll a mower, a wheelbarrow, or a hand truck through, the threshold gets in the way.

There are lower-profile threshold options that reduce the step, though they still are not flush with the floor. We walk through the height choices with you so the door fits how you actually move through it. If mobility is a concern, a side entry door with a flat sill may serve you better.

Added Weight and Panel Reinforcement

Cutting a door into a panel removes material and adds a frame, hinges, and a door slab. That changes the weight and balance of the whole garage door. Without correction, the door can feel heavy on one side and stress the opener.

That is why proper reinforcement and spring adjustment matter so much. The panel gets bracing to keep it stiff, and the springs get tuned to the new weight so the door still lifts smoothly. Skipping this step leads to a door that binds, sags, or wears its tracks unevenly.

Our team handles the balance side with care. After any pass door work, we check the door balance and adjust tension as needed, which you can read about on our door balancing and tension adjustment page.

Cost Compared to a Standard Door

A pass door adds cost. A plain sectional garage door install in the Irvine market often runs in the range of a standard door price, while adding a factory pass door typically adds several hundred to a couple thousand dollars on top, depending on material and finish.

Retrofitting a pass door into an existing door, when possible, can land in a similar range once you factor in reinforcement and labor. A full new door with an integrated pass door is often the cleaner value because the reinforcement is built in from the factory.

We give you a clear quote before any work so there are no surprises. If a standard sectional garage door replacement makes more sense for your budget, we will tell you that too.

Safety Sensors, Interlocks, and How They Work

A pass door needs safety hardware so the big door never moves while the small door is open. That single feature prevents most accidents. Here is the gear that makes it work.

• An interlock switch that stops the opener when the pass door is open
• Spring-loaded hinges and self-latching hardware to keep it closed
• Extra habits and checks to keep kids and pets safe

Good pass doors treat safety as part of the design, not an afterthought.

The Interlock Switch Explained

The interlock switch is the heart of pass door safety. It is a sensor that tells the opener whether the small door is closed. If the pass door is open even a crack, the opener will not run the big door.

This matters because a garage door lifting while the pass door swings out could bend the panel, snap hardware, or hurt someone standing there. The interlock removes that risk by cutting power to the motor until the small door is fully shut and latched.

We wire the interlock into your opener during install and test it before we leave. If you already have a smart opener, we make sure it plays well with the switch. Our opener and smart access team handles that integration.

Auto-Closing Hinges and Self-Latching

A pass door that swings open and stays open defeats the safety system. That is why quality doors use spring hinges that pull the door shut on their own. Walk through, let go, and it closes behind you.

Pair that with a self-latching mechanism and the door secures itself every time. The latch clicks home so the door is locked and the interlock reads it as closed. No relying on someone to remember to shut it.

Over time these springs and latches can loosen or wear. Adjusting them is part of routine care, and we cover common fixes later in this guide. When they work right, the door tends itself.

Keeping Kids and Pets Safe

In family-heavy communities like Woodbury and Portola Springs, child safety is top of mind for a garage upgrade. A pass door is generally safer than teaching kids to duck under a moving door, but it needs some ground rules.

Keep the self-latching hardware in good shape so the door does not swing open on its own. Teach children that the interlock keeps the big door from moving, but they should still never play near either door. A high-mounted latch can keep very young kids from opening it unsupervised.

For pets, the self-closing hinge keeps the door from being propped open by a curious dog. If your family includes small children or pets, mention it when we visit so we can set the hardware and latch height to suit your household.

Codes, HOA Rules, and Permits in Irvine

Before any exterior change, it helps to know the local rules. Irvine has both a city building code and active HOAs across its villages. Getting approvals right up front saves you from fines or a forced redo.

Irvine Building Department Requirements

Replacing a garage door or adding a pass door may trigger a permit with the City of Irvine building department. In general, swapping a door on a like-for-like basis is simpler, while structural changes or new openings draw more review. The safest move is to check before you order.

The building department looks at things like fire separation between the garage and living space, proper hardware, and safe egress. A pass door that opens outward and latches correctly usually satisfies these points. You can review general building permit information through the City of Irvine Community Development department.

Our team pulls the right paperwork and handles inspections when a permit is needed. We do this work across Irvine every week, so we know what the inspectors expect and how to pass the first time.

HOA Approval in Master-Planned Villages

Most Irvine neighborhoods sit inside master-planned villages with an HOA, many managed under Irvine Company guidelines. These associations review exterior changes, including garage door style, color, and any visible door within the panel. Skipping HOA approval can mean a notice to remove the change.

Before we install, we help you gather the product specs and finish details your HOA committee needs. Most approvals go smoothly when the pass door matches the approved door style for your village. The process usually takes a few weeks, so plan for that in your timeline.

For a broader look at how these communities handle exterior rules, the HUD homeownership resources offer general guidance on association standards. Locally, we handle the submission details so you are not guessing.

Keeping the Look Consistent With Your Village

Curb appeal matters in Irvine, and a mismatched door stands out fast. Neighborhoods like Great Park and nearby villages have set color palettes and panel styles that keep streetscapes looking uniform. A pass door should blend in, not announce itself.

We match the pass door panel to the rest of the garage door so it reads as one clean surface. Color, hardware finish, and window style all get matched to your existing door or your village standard. Done right, most visitors will not even notice the pass door until you open it.

If you want to upgrade the whole look, we can install a matching new door with the pass door built in. That approach keeps everything consistent from day one and often clears HOA review faster.

Installation, Retrofit vs. New Door, and What to Expect

Knowing what the buying and install process involves takes the guesswork out. There are two main paths: retrofit a pass door into your current door, or order a new door with the pass door built in. Here is how they compare.

Factor	Retrofit Into Existing Door	New Door With Built-In Pass Door
Cost	Lower up front, plus reinforcement	Higher, but includes new door
Strength	Depends on panel condition	Factory-reinforced, strongest
Lead time	Faster if door suits it	Longer, often a few weeks
Best for	Newer, solid existing doors	Older or worn doors

Can a Pass Door Be Added to an Existing Door?

Yes, in many cases a pass door can be retrofit into a door you already own. The door needs to be a sectional style in good shape, with a panel wide and strong enough to take the cutout and reinforcement. Steel doors handle this better than thin or damaged ones.

A retrofit makes sense when your existing door is only a few years old and structurally sound. Cutting and reinforcing a solid door costs less than a full replacement while still giving you the foot access you want.

When the door is old, dented, or already sagging, a retrofit is a poor investment. Adding weight and cutting into a tired door only speeds up its problems. In those cases we recommend a new door instead.

Ordering a Factory-Built Pass Door

Factory-integrated pass doors are built into the panel at the manufacturer with proper reinforcement, sealing, and hardware. They hold up far better than a door cut in the field, because the engineering is planned from the start. The panel, frame, and springs are matched to work as one system.

Lead times for a factory door with a pass door usually run a few weeks, depending on the maker and finish. We help you pick the material, color, and window options during the order so it arrives ready to match your home.

If you want a specific look, our custom garage door design and install service can spec a factory pass door to your village standards. It is the most durable route for long-term use.

What a Typical Install Day Looks Like

On install day, the Urgent Garage Doors crew arrives with the new door or the retrofit kit and protects your driveway workspace. For a full door swap, we remove the old door and hardware first, then set the new panels and pass door into the tracks.

Next we handle the details that make the door safe and smooth. That means mounting hinges, wiring the interlock into the opener, adjusting the springs for the new weight, and testing the balance. We open and close both doors many times to confirm everything works.

A retrofit usually takes part of a day, while a full new door with a pass door often runs a full day. Before we leave, we walk you through the interlock, the latch, and basic care so you are comfortable using it.

Maintenance and Common Repairs Over Time

A pass door lasts for years with a little care. Because it holds a person-sized door inside a moving panel, a few parts need occasional attention. Catching small issues early keeps the whole system running right.

Sagging Doors and Loose Hinges

Over time, a pass door can start to sag or drag at the bottom corner. The weight of the door slowly pulls on the hinges, and the alignment shifts. You might notice it rubbing the frame or not latching cleanly.

Most of the time this is a hinge adjustment, not a major repair. Tightening the hinge screws and shimming the hinge back into position brings the door back into square. Loose or stripped screws sometimes need anchors or replacement.

If the sagging keeps coming back, the frame or panel reinforcement may need attention. Our team can diagnose whether it is a simple hinge fix or something deeper during a maintenance visit.

Weather Seal and Threshold Wear

The weather seal around a pass door takes a beating from sun, foot traffic, and the threshold step. Over a few Irvine summers, the rubber gets brittle and cracks, letting heat and dust slip through. Worn threshold seals are one of the most common things we replace.

Fresh seals keep the garage cooler in summer and cleaner during Santa Ana wind season. Replacing them is a quick job that pays off in comfort and lower interior temperatures. It is worth checking the seals once a year.

We handle seal and threshold replacement as part of our preventive maintenance plan. Bundling it with a full door tune-up keeps everything in top shape.

Interlock and Latch Troubleshooting

If your opener suddenly stops responding, the interlock switch is the first thing to check. A pass door that is not fully latched, or an interlock knocked out of alignment, will tell the opener the door is open and block it from running. Make sure the pass door is shut tight and the latch is fully engaged.

A sticky latch is another common complaint. Dirt, grime, or a slightly warped door can keep the latch from seating. A little cleaning and lubrication often solves it, though a worn latch may need replacing.

When the fix is not obvious, call us. Our garage door won't open or close service covers interlock and opener faults so you are not left locked out. We track down the cause and get you moving again.

Final Thoughts

A pedestrian pass door turns your garage into a space you can walk into as easily as any room in the house. It saves time on quick trips, cuts wear on your opener and springs, and keeps Irvine heat and Santa Ana dust outside. For detached garages, busy families, and garage workshops, it is one of the best upgrades we install.

It is not right for every home. Narrow single-car garages, tight clearance, and mobility concerns around the raised threshold are real reasons to consider a side entry door instead. The right choice depends on your layout, your habits, and your budget.

If you are weighing a pass door for your Irvine home, our team at Urgent Garage Doors is glad to look at your setup and give honest advice. Call us or reach out through our contact page to set up a consultation. We serve Irvine and the surrounding communities every day and will help you pick the solution that fits.

Frequently Asked Questions

What is a pass door in a garage door?

A pass door is a small, person-sized door built into one panel of your garage door. It lets you walk in and out on foot without raising the whole door. You may also hear it called a wicket door or a man door, especially in commercial settings. All three names describe the same door-within-a-door design that adds quick pedestrian access to your garage.

How much does it cost to add a pass door in Irvine?

Costs vary by material, finish, and whether you retrofit or buy a new door. Adding a factory pass door to a new door often runs several hundred to a couple thousand dollars above a standard door price. Retrofitting into an existing door lands in a similar range once reinforcement and labor are counted. We give a clear written quote after seeing your door, so there are no surprises later.

Can I add a pass door to my current garage door?

Often yes, if your door is a sectional style in good shape with a panel wide and strong enough for the cutout. Solid steel doors only a few years old are good candidates for a retrofit. If your door is old, dented, or already sagging, a new door with a built-in pass door is the smarter buy. We inspect the door and tell you honestly which path fits.

Do pass doors weaken the garage door?

Cutting an opening does remove material, so proper reinforcement is what keeps the door strong. Factory-built pass doors add bracing bars and a rigid frame so the panel stays stiff and travels smoothly. We also adjust the springs to match the new weight and balance. Done correctly, a reinforced pass door stays sturdy for many years of daily use without weakening the door.

Is a pass door safe for kids and pets?

Yes, when the safety hardware works. An interlock switch stops the big door from moving while the pass door is open, and spring hinges plus self-latching keep the small door closed on its own. For families in areas like Woodbury and Portola Springs, we can set the latch high enough to keep young children from opening it alone. Keeping the hardware maintained is what keeps it safe.

Do I need a permit for a pass door in Irvine?

You may. The City of Irvine building department can require a permit, especially for structural changes or new openings. Most Irvine neighborhoods also sit inside HOAs that review exterior door changes for color and style. We help pull the right permits, handle inspections, and prepare the HOA submission so your project stays fully approved and avoids fines or forced removal.

Why is there a step to climb over in a pass door?

The raised threshold at the bottom runs around the door frame to seal against weather and give the frame its rigidity. It usually stands four to seven inches high, so you step over it each time. Lower-profile thresholds can reduce the step, though they are not flush with the floor. If mobility or rolling equipment is a concern, a flat-sill side entry door may serve you better.

Will a pass door affect my garage door opener?

In a good way, yes. The interlock switch ties into the opener and prevents it from running while the pass door is open, which protects both the door and the motor. Using the pass door for foot trips also means fewer full door cycles, so the opener and springs last longer. We wire and test the interlock during install to make sure it works with your opener.

How long does installation take?

A retrofit into a suitable existing door usually takes part of a day. A full new door with an integrated pass door often runs a full day, since it involves removing the old door, setting new panels, wiring the interlock, and tuning the springs. We test both doors many times before finishing and walk you through the hardware so you are ready to use it.

Can Urgent Garage Doors match my HOA's approved style?

Yes. We match the pass door panel, color, hardware finish, and window style to your existing door or your village standard so it blends in cleanly. For villages around Great Park, Cypress Village, and other Irvine communities, we help gather the specs your HOA committee needs for approval. Our goal is a pass door that keeps your curb appeal and reads as one clean surface.
